Simucube 2 Sport Direct Drive System

The Simucube 2 Sport Direct Drive System raises the bar for sim racing steering wheel systems. It offers the most realistic and detailed force feedback currently available through a high torque, brushless motor. Designed for sim racing enthusiasts, the Sport 2 offers a serious amount of power with up to 17Nm of direct drive torque. Highly responsive and accurate, it provides a highly detailed driving experience.

The ultra low latency will give you incredible feel, you can feel and then correct those small slides sooner, putting you a step ahead of your opponents
A precision machined quick release system will give you a rock solid feel and a guided rail design that makes a steering wheel change very easy to do
A high efficiency direct drive motor and clever electronics with heat guiding means the system produces less heat and doesn't require a noisy fan to keep it cool
Built in wireless receiver that will automatically connect to a wireless steering wheel and has an unbreakable millisecond range response time
2 years manufacturers warranty

Not only can the Sport wheel base produce a huge amount of torque, it is also highly accurate with robotics grade angle sensors and high quality encoders. This combined with custom made electronics and all wrapped up inside a full metal CNC machined case means that the Sport is a solid unit that is capable of providing the very best in sim racing force feedback. The wheel base system works with the Simucube quick release wheel side kit which is available to purchase separately. The wheel side kit simply clips onto the wheel base and it locks in place with a safety pin. This system allows you to have multiple steering wheels where you can quickly change wheels with ease.

Dimensions

Wheel Base Dimensions incl. SQR: 130 x 130 x 250 mm
Mounting Holes: M8 x 4 pcs threaded hole
Mounting Hole Pattern DIA: 145 mm
Flange Centering Hole DIA: 110 mm
Wheel Base Weight: 8kg

Specifications

Motor: Direct Drive optimized ultra low torque ripple motor
Wireless Wheel Support: Yes
Max Torque: 17 Nm
Max Torque Slew Rate: 4.8 Nm/ms
Angle Sensor: 22 bit absolute
Power Supply: 280 W
Torque Slew Rate Adjustment: 1 – 4.8.0 Nm/ms
Torque Reconstruction Processing: Yes
Static Force Reduction: Yes
Natural Damping, Inertia and Friction Filters: Yes

COMPARE MODELS

	SIMUCUBE 2 SPORT	SIMUCUBE 2 PRO	SIMUCUBE 2 ULTIMATE
MOTOR	Direct Drive optimized ultra low torque ripple motor	High response speed Direct Drive optimized ultra low torque ripple motor	Maximum response speed, low inertia, Direct Drive optimized ultra low torque ripple motor
SIMUCUBE WIRELESS WHEEL™ SUPPORT	Included	Included	Included
SIMUCUBE QUICK RELEASE™	Not Included	Not Included	Included
MAX TORQUE *	17 Nm	25 Nm	32 Nm
MAX TORQUE SLEW RATE	4.8 Nm/ms	8.0 Nm/ms	9.5 Nm/ms
ANGLE SENSOR	22 bit absolute	22 bit absolute	24 bit Hiperface
TORQUE OFF BUTTON	Standard (Premium optional)	Standard (Premium optional)	Premium (with remote power switch)
POWER SUPPLY	280 W	R2 1 x 450 W Peak	1000 W
WHEEL BASE DIMENSIONS INCL. SQR™	130 x 130 x 250 mm	130 x 130 x 270 mm	115 x 115 x 310 mm
MOUNTING HOLES	M8 x 4 pcs threaded hole	M8 x 4 pcs threaded hole	9 mm dia x 4 pcs through hole
MOUNTING HOLE PATTERN DIA	145 mm	145 mm	130 mm
FLANGE CENTERING HOLE DIA	110 mm	110 mm	110 mm
WHEEL BASE WEIGHT	8.0 kg	11.1 kg	11.3 kg
STANDARD WARRANTY	24 months	24 months	60 months
*) Torque is continuous until motor gets very hot. In preliminary testing, no-one has managed to cause torque to start throttling.
	SIMUCUBE 2 SPORT	SIMUCUBE 2 PRO	SIMUCUBE 2 ULTIMATE
TORQUE RECONSTRUCTION PROCESSING	Yes	Yes	Yes
STATIC FORCE REDUCTION	Yes	Yes	Yes, in detail adjustable
NATURAL DAMPING, INERTIA AND FRICTION FILTERS	Yes	Yes	Yes, in detail adjustable
ULTRA LOW LATENCY MODE	Yes	Yes	Yes
TORQUE SLEW RATE ADJUSTMENT	1 – 4.8 Nm/ms	1 – 8.0 Nm/ms	1 – 9.5 Nm/ms

Featured Clearance

Simucube 2 Sport Direct Drive System

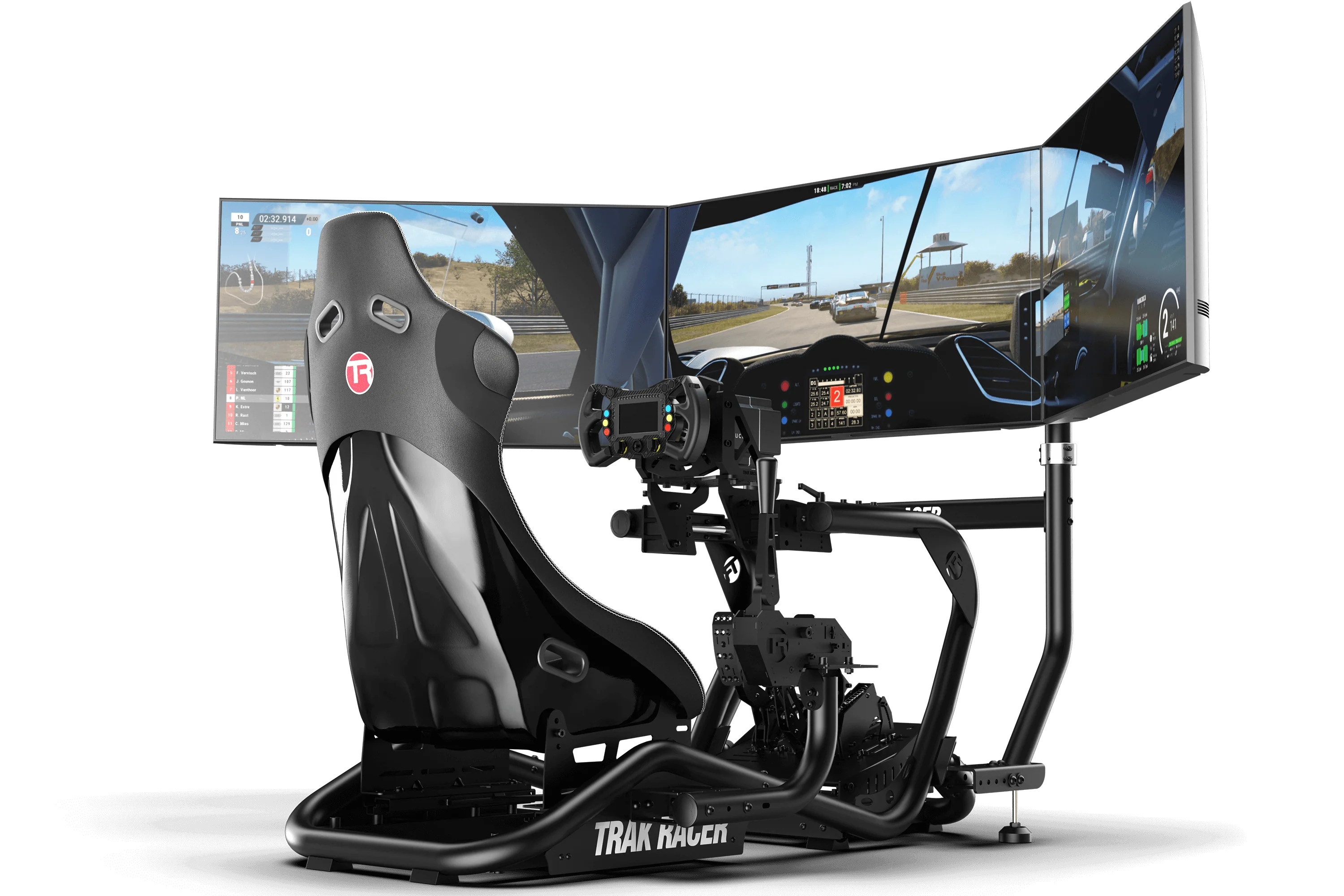

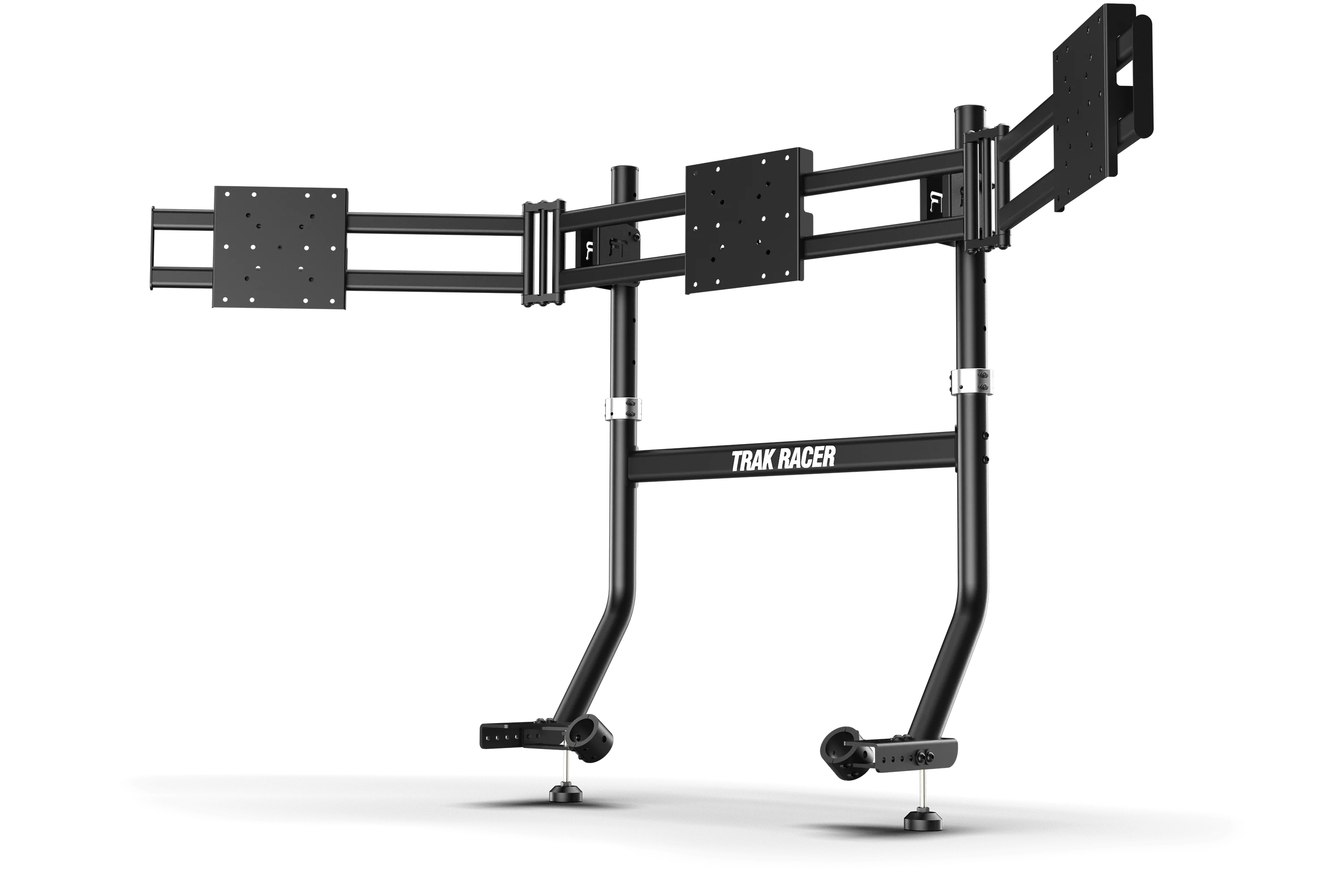

Cockpit-Mounted Triple Monitor Stand for Trak Racer TR8 PRO

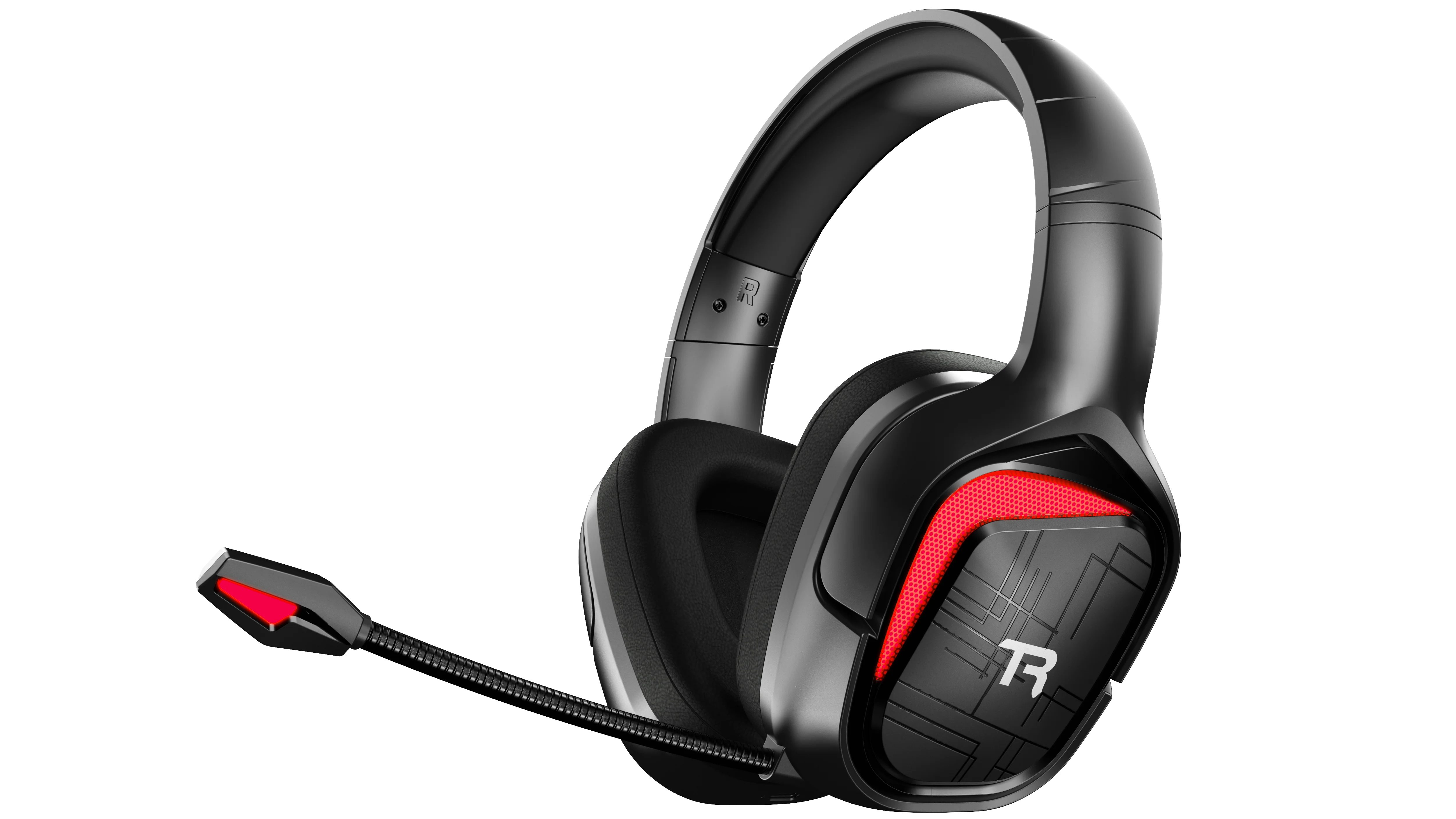

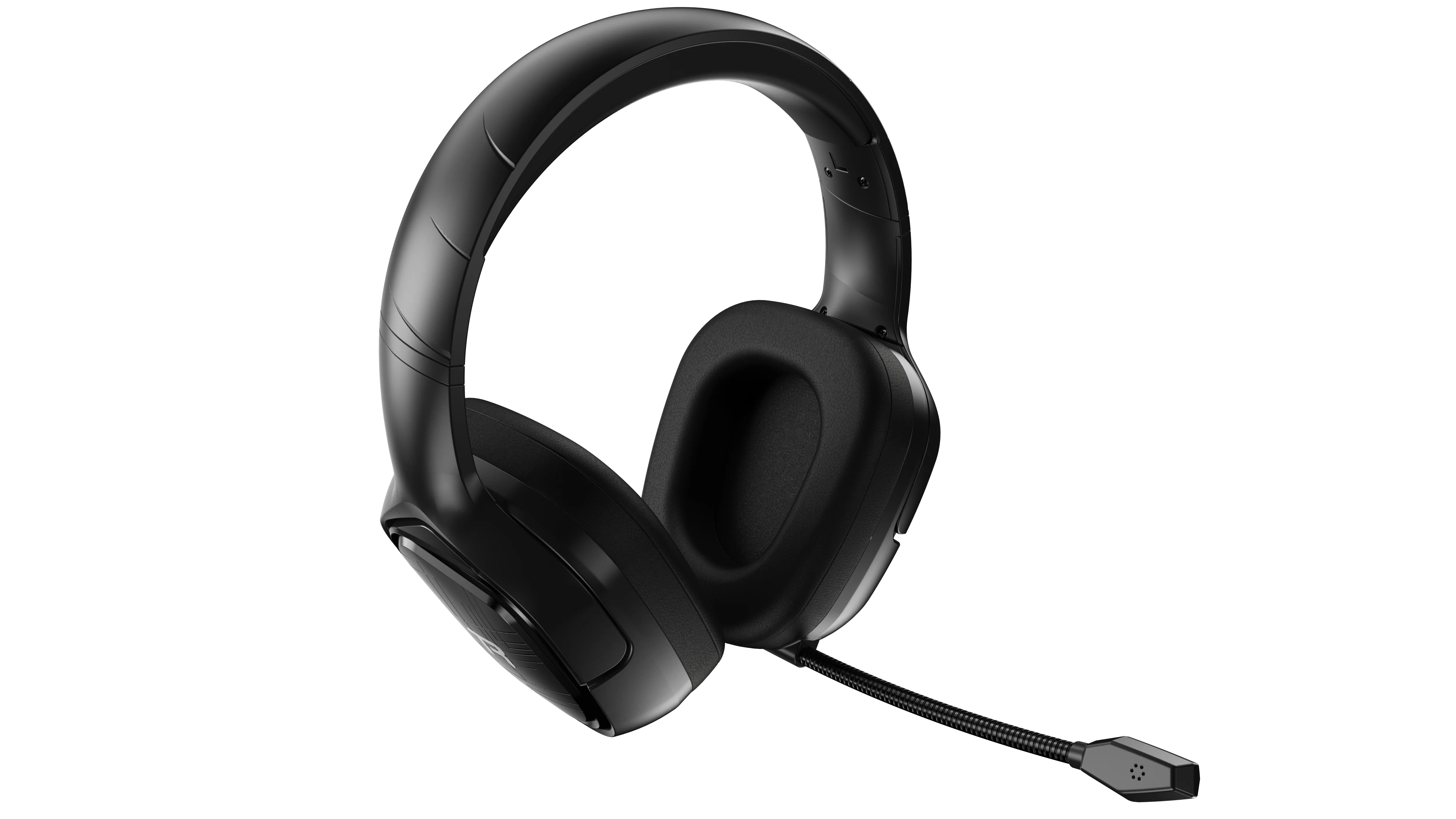

Trak Racer Wireless Gaming Headset
